HMI solution that visualizes and monitors design elements of the
process control system by drawing, editing, and monitoring by authority

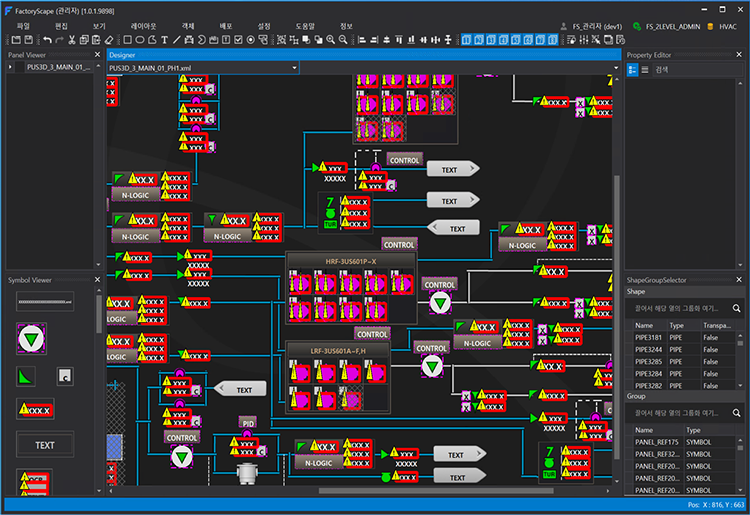

Main function
Various user-convenient functions in addition to the HMI client design function used for process control and monitoring
Graphic Editing
Provide graphic editing tools
- Graphic editing tool for easy and convenient editing of objects/symbols
File History
Design-file history management
- Manage the file history of user actions
Access Rights
Manage access rights by user
- Block work risks by granting access rights for each user.
HMI Linkage
Loading and editing HMI client files
- Load and edit design files of XML-based HMI client
Automated Distribution
Automated distribution of design files
- Deploy distribute files automatically to multiple devices to be installed.
Features & Advantages
01
Editing HMI client program files
- Conveniently edit and save HMI client files based on XLM.
- Open the XML file created in HMI Client, and edit and save the objects or symbols included in the file.
02
Work authority and history management
- Ensure system safety
- Authorize work in advance only to necessary personnel
- Define the scope of work per authority
- Save/retrieve the work history of workers in the DB.
- Track the work history of workers when problems arise.
03
Automated distribution
- Distribute the final file automatically when completed.
- Distribute automatically registered files to terminals set by workers as distribution destinations.
- Prevent human error that can occur in manual work.
Expected benefits
01
Rapid response to work with frequent design changes
- No need to purchase unnecessary HMI components for simple screen editing
- Restrict screen editing that may cause risk by authority
- Effective when introduced into environments such as commissioning
02
Improved distribution efficiency
- Distribute to other operating terminals after completing modification work
- Automatic backup when modifying the terminal screen
References
Built the Pyeongtaek utility integrated control
Related solutions
FMCS
A factory automation solution that provides the best safety, environment, and quality by efficiently monitoring and controlling various elements of the factory environment necessary for the manufacturing process
Related business
Utilities integrated control
An integrated control system to monitor and control all facilities that supply utilities in a factory in real-time
