A smart crane solution that adds SAFETY and AUTOMATION
to cranes operated on industrial sites.
Main functions
SMART CRANE
Hook centering
When lifting an object, move the crane based on the center of the hook to prevent the risk of collision with the surrounding environment.
Snag prevention
Prevent a snag by notifying with buzzers or stopping the operation (moving to the other side, etc.) when deviating from a certain angle.
Anti-sway
Reduce mechanical damage and maintain optimum performance by minimizing sway through motor control.
Service areas
When driving a crane
Automatically calculate the swing angle based on the pendulum motion when the crane is moving, and control the swing by the hoist rope length and driving.

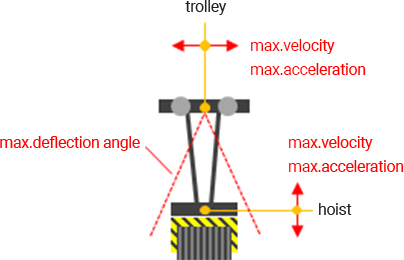

When lifting a crane
If the trolley position differs from the load position when the load is lifted from the floor, automatically detect and prevent sudden horizontal tilting and automatically align the trolley position to the load position using the alignment function.
Expected benefits
01
Accident prevention
Prevent accidents while operating a crane.
02
Life extension
Extend crane life by minimizing the load associated with crane operation.
03
Full operations
Maximize plant operation by minimizing downtime.
References
Built the smart crane for the GM Bupyeong Plant
Related business
Smart Logistics
State-of-the-art logistics facilities, equipment, and operating systems to can exhibit excellent performance at low cost, high efficiency, stability and eco-friendliness
