A data relay solution that collects data from the manufacturing site and
integrates it by providing it to the upper IT system (EES, ERP, MES, etc.) through a standardized method
Main functions
InterSysLink provides various functions to lay the foundation for building a smart factory.

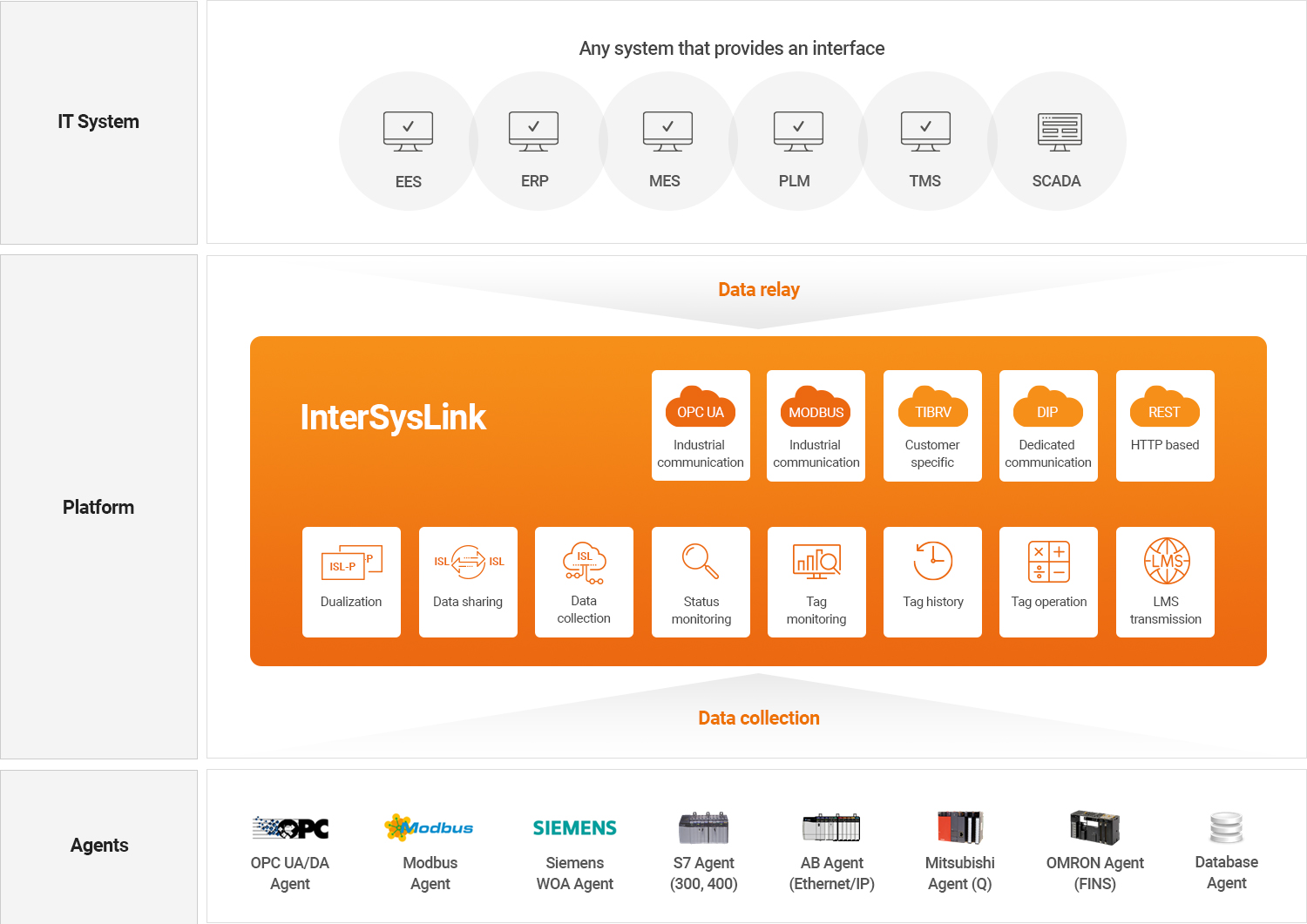

IT System
Any system that provides an interface
EES
ERP
MES
PLM
TMS
SCADA
Platform
InterSysLink
Agents
OPC UA/DA Agent
Modbus Agent
Siemens WOA Agent
S7 Agent (300, 400)
AB Agent (Ethernet/IP)
Mitsubishi Agent (Q)
OMRON Agent (FINS)
Database Agent
01
Data collection
InterSysLink collects data from various facilities within the plant.
Industrial communication
- Standard protocols such as OPC UA, MODBUS TCP, etc.
- PLC communication such as S7 PLC, OMRON PLC, etc.
HMI data collection
- HMI data such as WinCC OA

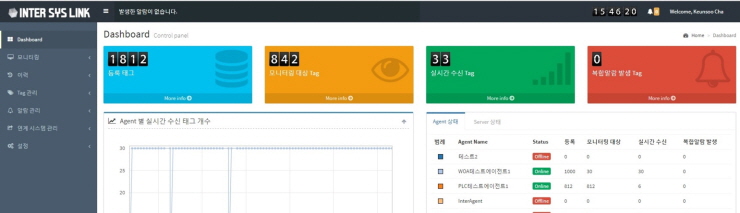

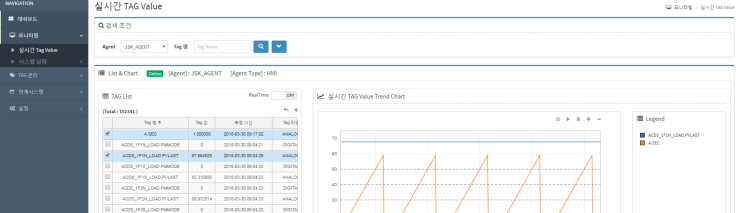

Data monitoring
- Real-time monitoring of collected data
- Data history storage and inquiry
02
Data relay
InterSysLink transmits the collected data to higher-level systems such as EES, ERP, and MES.
Open API
- HTTP-based REST API
- Implementation and interworking of various web applications
Data sharing
- Sharing data between InterSysLink servers
- Sharing necessary data between different systems
Customer specialization
- Support for developing protocols suitable for customer-specific communication
- TIBCO rendezvous communication
- TCP/IP socket-based communication
Features & Advantages
01
Data collection in one solution
- Standard protocol support
- Vendor-specific PLC communication support
- Integration of multiple data acquisition systems
02
The foundation of a fast smart factory
- Easy to set up data collection
- Various data collection agents
- Customer-specific protocol development
03
Large data processing
- Data processing from multiple systems as one server
- Processing up to 400,000 data points (tags) per server
04
Stable system operation
-
Non-interruption of data relay by supporting dualization
(Active-Active method) - Minimized downtime with system status monitoring function
Expected benefits
01
Stable data linkage
- Non-disruptive systems with dualization
- Minimized downtime with self-system diagnostics
02
Lower cost of building a smart factory
- Integration of individual data link programs
- Collection of various equipment data in a single solution
- Large data processing with one server
03
Improved maintenance
- Easy maintenance by consolidating data collection
References
Built the Giheung, Hwaseong, Pyeongtaek, AUSTIN, and XIAN data platforms
Built the Asan data platform
Built the Changwon Plant smart factory system
Built 3D integrated solar power plant operation systems
Built 3D integrated monitoring systems
Built 3D integrated control systems
Related solutions
FMCS
A factory automation solution that provides the best safety, environment, and quality by efficiently monitoring and controlling various elements of the factory environment necessary for the manufacturing process
3D CUBE
A solution that supports the operation of a smart factory by realizing a factory in a virtual space
FIMS
A solution that monitors the infrastructure (server, OS information, network, DB, etc.) and process resource information (PLC, HMI) necessary for factory operation and informs the operator in case of an abnormality to take quick actions
Related business
Utilities integrated control
An integrated control system to monitor and control all facilities that supply utilities in a factory in real-time
3D production/facility integrated control
Environments and experiences identical to the actual factories by realizing the work status/history
of each process up to the finished product, facility performance, and sensor information in 3D
Data Platform
Smart factory infrastructure by realizing standardized system integration through data collection and relaying between other models
